The maximum slewing diameter on the bed: Φ830mm
The maximum slewing diameter on the saddle: Φ650mm
| Projects | unit | Specifications | |
|
add
work Fan surround |
Maximum swing diameter on the bed | mm | Φ830 |
| Maximum swing diameter on the saddle | mm | Φ650 | |
| Maximum turning diameter | mm | Φ680 | |
| Maximum turning hub diameter | in | 24 | |
|
host
axis |
Spindle head type | GB5900.1 | A2-11 |
| Spindle taper hole specifications | metric system | 1:20 | |
| Spindle bore diameter | mm | Φ105 | |
| Spindle bearing diameter (front/rear) | mm | Φ160/Φ140 | |
| Spindle speed | r/min | 22-2200 | |
| Main motor power (continuous/30 min) | kW | 37/45 | |
| Maximum output torque of the spindle | Nm | 670 | |
|
bed
saddle |
Tilt angle | DEG | 45° |
| Travel distance X/Z | mm | 360/880 | |
| Fast movement speed X/Z | m/min | 16/20 | |
| Servo motor torque X/Z | Nm | 22/30 | |
| Ball screw diameter X/Z | mm | Φ40/Φ50 | |
|
knife
frame |
Number of knife positions | 12 | |
| Tool size (turning/boring) | mm | 32X32/Φ50 | |
|
that
it |
Power capacity | kVA | 60 |
| Volume (length×width×height) without chip conveyor | mm | 5380×2490×2460 | |
| Machine weight | kg | 10000 |

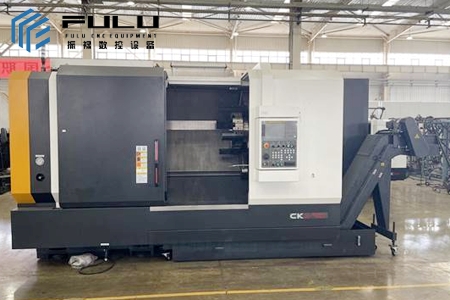

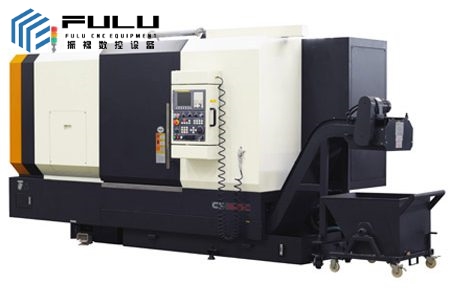

CK7670LE is a full-featured CNC lathe specially developed for high-speed, high-precision turning of aluminum alloy wheels in the automobile and motorcycle industry, and can process up to 24" wheels.
