Round material: Ø330 mm
Square Material: 330W x 330H
| Maximum cutting range |
Round material Ø330 mm
Square material 330×330 mm |
Band saw blade specifications | 34×1.4×4115 mm |
| Band saw blade line speed | 30, 50, 65, 80m/min (belt gear speed regulation) | Band saw blade feed rate | 0-300mm/min (hydraulic stepless speed regulation) |
| The input supply voltage of the machine | A.C380V、 50Hz | Main motor power | 4kW 4th Stage |
| Hydraulic motor power | 0.75kW | Cooling pump power | 0.06kW |
| Table height | 630mm | End-face verticality | 0.2/100mm |
| Hydraulic box volume | 50L | Cooling box volume | 40L |
| Feeding method | Hydraulic clamping feeding | Maximum single feed cylinder stroke | 500mm (multiple feeding) |
| Repeatable feeding accuracy | ±0.2mm | Main drive mode | Worm gear drive |
| Clamping method | Hydraulic clamping | Band tensioning method | Manual tensioning |
| Sawdust clean-up method | Active wire brushes | Control mode | PLC control + touch screen operation |
| Dimensions of the main engine (L×W×H) | 2150×2300×1500mm |
Product Details

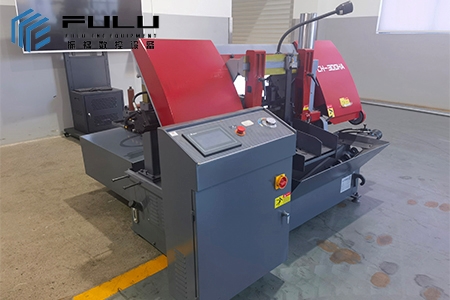

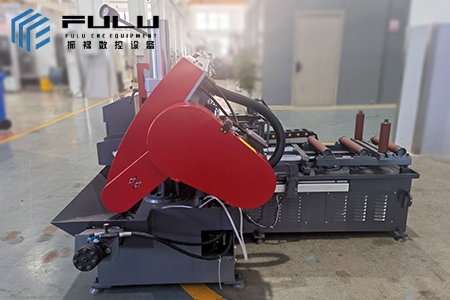

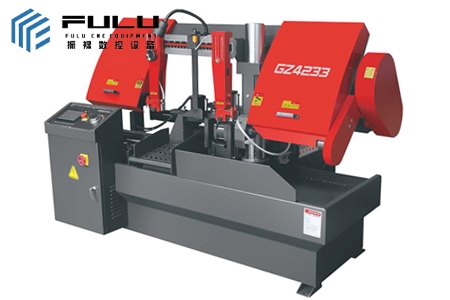

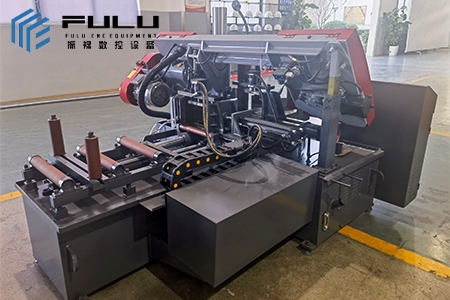

The GZ series of PLC-controlled fully automatic metal cutting bandsaws from FULUCNC is a robust, modern shop saw for precise sawing of medium diameters. All operating switches are clearly grouped on the touch screen and control panel. The main feature of the machine is fully automatic control. Using PLC touch screen panel, it can adjust the feed of the saw frame, adjust the speed of the saw blade steplessly, and process the workpiece hydraulically. The powerful automatic feeding does not require any electronics or programming and still provides high repeatability and dimensional accuracy.
The GZ series band saws are designed for straight cutting of large workpieces made of steel, cast iron and other metals. The rigid two-column frame is very stable and the main drive is achieved by means of a low-maintenance V-belt. The workpiece clamping and saw frame stroke are hydraulically driven.
Features Rigid double column frame
with column guide rails for excellent stability Control panel
with touch screen
Hydraulic vise workpiece clamping
Automatic saw blade overload control Support table
with integrated feed rollers Feeding system
with workpiece guide rollers Fast approach bar detection of workpiece height
Feed roller table 700 m (27 in)
Standard Equipment:
Hydraulic clamping,
Bimetal band saw blades
roller support,
Cooling system,
Work lights,
Operating tools,
Operation manual
Optional equipment
| Description of the spare part | specification | function | |
| 1 | Detachable shelves | 2 meters | Carrying material |
| 2 | Upper pressure device | CH-300HA | Mounted on a vise |
| 3 | Relief valve | Hydraulic station clamping force adjustment | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 4 | Chip conveyor auger | CH-300HA | Chips are removed |
| 5 | The saw band is hydraulically tensioned | CH-300HA | Hydraulically tension saw blades |
| 6 | inverter | CH-300HA |
