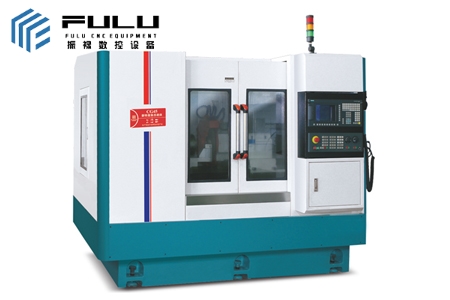

Grinding diameter : 400mm
Grinding length: 200mm
Technical Parameters:
| Projects | Units | Model: CG45 | |
| Grinding the maximum diameter | mm | Φ400 | |
| Grinding the outer diameter length | mm | 200 | |
| Outer round sand wheel size | mm | Φ405*32-60*127 | |
| Processing capacity | Grinding inner diameter range | mm | Φ6-200 |
| Grinding depth of diameter | mm | 200 | |
| Maximum length of workpiece | mm | 260 | |
| The speed of the spindle of the inner grinding wheel | rpm | 20000/40000(Motor spindle) | |
| Grinding wheel dressing | mm | Automatic type | |
| Numerical control system | cover | Siemens | |
| The height from the center of the grinding wheel spindle to the ground | mm | 1150 | |
|
Job
Headframe |
Spindle speed | rpm | 0-1000 |
| X-axis fastest feed rate | mm/min | 10000 | |
| X-axis minimum feed unit | mm | 0.001 | |
| The angle of rotation of the working head | Deg | +15~-5 manual | |
| workbench | Z-axis fast travel speed | mm/min | 18000 |
| Minimum feed in the Z-axis | mm | 0.001 | |
| Maximum travel stroke | mm | 250 | |
| motor | Cylindrical grinding wheel spindle motor | KW | 3.75 |
| Internal spindle motor | KW | 3.0 | |
| X-axis feed motor (servo) | KW | 1.5 | |
| Z-axis feed motor (servo) | KW | 1.5 | |
| Headstock spindle motor | KW | 1.2 | |
| Cooling water pump motor | KW | 0.37 | |
| Lubricating oil motors | KW | 0.25*2 | |
| other | Coolant tank capacity | L | 200 |
| Machine weight | Kg | 6500 | |
| Device size (L*W*H) | mm | 2300*2200*2000 | |
Comprehensive features
● Grinding of outer diameter and inner diameter parts in one clamping. Complex solutions for high-precision grinding of small and medium-sized workpieces.

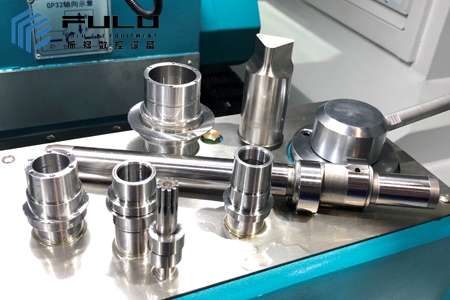

● Machine tool industry, automotive engineering, tool and die industry, aerospace industry, pneumatic/hydraulic, electronic/electrical engineering
● Modular design, different grinding wheel spindle combinations can be selected, which fully meets all the requirements of machining.

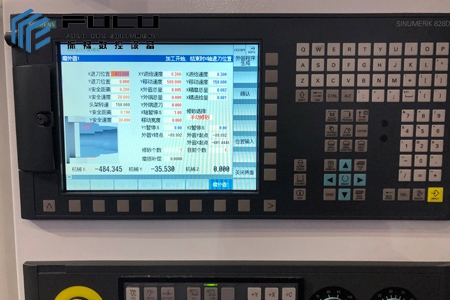

● The control system interface makes the operation and programming of the system very simple and easy to learn. Workpiece grinding and grinding wheel correction programs can be programmed on the machine control system or on a separate PC.
● It can be equipped with automatic loading and unloading system to meet the needs of industrial mass production.
Create a new revolution in compound grinding machine grinding!

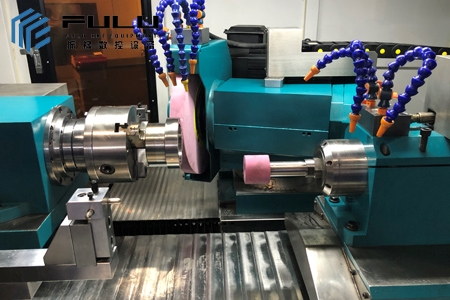

It can realize one-time clamping, and can carry out composite integrated grinding of inner circle, inner cone, outer circle, outer cone, end face, etc.
1. Bevel external grinding wheel + inner hole grinding grinding wheel
2. Double cylindrical grinding wheels
3. Double bore grinding wheel
4. Straight into the cylindrical grinding wheel + inner hole grinding grinding wheel
Optional equipment
| serial number | project | Origin | brand | quantity |
| 1 | Automatic online measuring instrument for outer diameter | Italy | Marposs P1DME | 1 set |
| 2 | Automatic on-line measuring instrument for end faces | Italy | Marposs T18 | 1 set |
| 3 | 6/8" hydraulic three-jaw chuck | Taiwan, China | Kuril Islands | 1 set |
| 4 | Oil mist collector | China | JD-7N | 1 set |
| 5 | Iron filings + paper belt filter | China | Four stars | 1 set |
