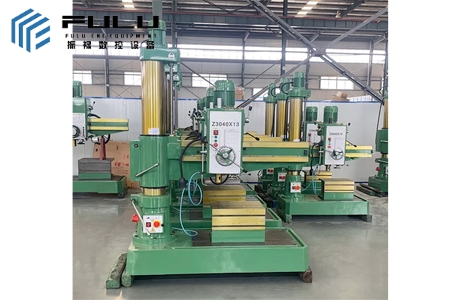

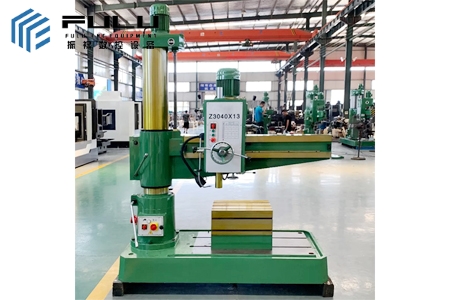

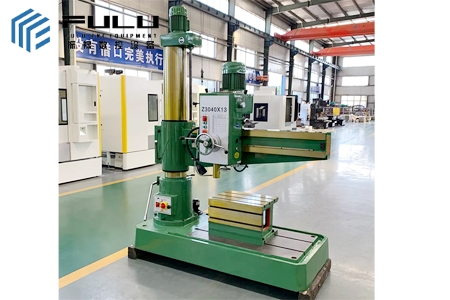

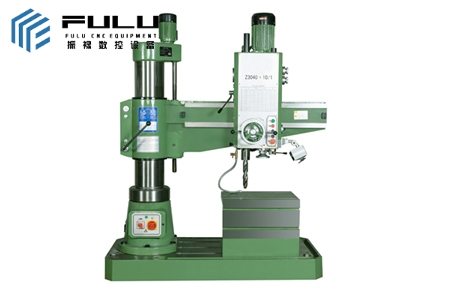

Z3040X13 Radial Drilling Machine

Product Description:

Z3040 radial drilling machine is a small and medium-sized mechanical radial drilling machine. The Z3040 radial drilling machine can rotate one circle along the column. The maximum drilling diameter is 40 cast iron and 35 steel. The spindle end is 260-1000mm away from the work table, the spindle center is 300-1000mm away from the column bus, the column diameter is 230mm, the spindle taper is No. 4, the six-section spindle speed is 75, 130, 240, 380, 660, 1220, the motor power is 2.2KW/0.75, the weight of the machine tool is 1300kg, and the Z3040 radial drilling machine These parameters determine that the machine tool can be processed in a wide range. Both the main motion and feed motion of the Z3040 radial drilling machine are powered by the spindle motor. The main movement of the spindle transmits power to the feed movement through the transmission mechanism. The characteristics of Z3040 radial drilling machine can better meet the requirements of general drilling, tapping and other processes.

Z3040 radial drilling machine spindle control has two CJX2-1201 AC contactors controlled by button circuit, rocker lift has two CJX2-1201 AC contactors controlled by button long opening point, cooling water pump is controlled by hy3-10/3 switch, machine tool safety voltage 24V design is reasonable and safe. The spindle speed and spindle feed are multi-stage adjustable, and the adjustment range is large, which can well adapt to the requirements of different processes, different workpiece materials and different tools on the radial drilling machine. The overall adaptability of the machine tool is strong. Z3040 radial drilling machine can be flexibly used in machinery manufacturing, shipbuilding, mining accessories, hardware industry instrumentation and other industries.

Features:

● Z3040 radial drilling machine guide rails, columns, and boxes are made of high-strength cast iron. The castings are heat-treated after casting to eliminate the internal stresses of the castings. Castings that have been heat-treated to relieve internal stress can maintain the stability of the machine body for a long time. The surface of the column is in contact with the guide rail. Surface quenching treatment to maintain the hardness of the guide rail and column, the machine tool can maintain accuracy and durability for a long time;

● The electrical and motor of Z3040 radial drilling machine adopt the national standard of electrical requirements for machine tools. National standard electrical control, machine tools are more energy-saving, and the running time is safer;

● The rotating gears of the headstock are precision ground and carburized and quenched. The gearbox has low operating noise and good transmission force;

● The bearings of each rolling part are made of domestic Harbin bearings, and the whole machine can be cut at high speed;

● The spindle box adopts automatic oil supply system for internal circulation lubrication, and the gears and bearings are fully lubricated, which solves the shortcomings of insufficient lubrication of the top gear of the traditional lubrication method;

● The spindle is equipped with a travel protection switch, which solves the problem of damaging the spindle or gear when the spindle is fed to the top when the worker misoperates or is automatically fed;

● The switch of the column safety locking device can automatically cut off the power supply when the worker forgets to loosen the locking device, which can well protect the column from being strained and the turbine and worm from slipping;

● The screw rod is made by brand manufacturers. Brand manufacturers do not directly use round steel lathes for processing, but strictly follow the production and processing technology of thread processing technology such as quenching and tempering, quenching. The screws produced by special screw processing equipment are processed by grinding machines. Precision grinding, the service life is twice that of ordinary screw, the nut is a brass nut, with good wear resistance and good precision;

● Z3040 radial drilling machine has undergone strict product quality precision screening from blank casting, parts procurement, and supplier selection. Each process is strictly inspected to ensure the overall accuracy requirements of the machine tool when it leaves the factory.

Standard equipment

Radial drilling machine
deceleration sleeve
unsleeve, wedge
drill chuck
workbench
unloader, wrench
anchor bolt,
LED work light
adjustment pad
operation manual
certificate
Packing list
